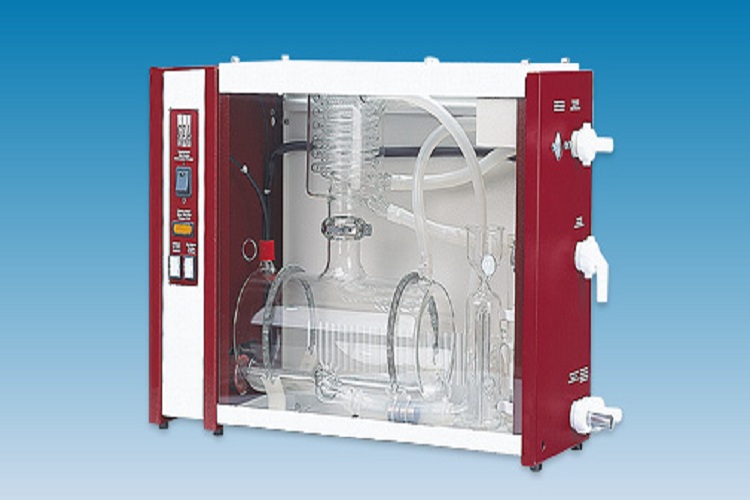

Mono still made of glass Order no.2204
Execution and characteristics
Mono-still (fully automatic) made of glass, suitable for wall mounting and table installation.
Very good distillate quality, conductivity Mono-distillate approx. 2.2 μs / cm at 25 ° C (see "Technical data").
Electronic level monitoring during the entire distillation process.
Electronic mudguard triggers automatic water change to flush and clean the evaporator.
Checking the water level in the evaporator with automatic power off in case of lack of water.
Energy savings by distillation of the heated cooling water.
Water savings through automatic shutdown. Unnecessary water consumption is avoided.
Sterilization of the capacitors by vapor deposition.
Visible operation by non-fogging, unbreakable and easily removable windscreen.
Heating rods with quartz glass sheath.
Distillation bubbles, condensers and overflows DURAN® / borosilicate glass 3.3. Capacitors with droplet-repellent steam guide.
Distillate removal on the right side of the device through hose connection.
CO 2 degassing opening on the condenser.
Housing made of electrolytically galvanized sheet steel, electrostatically powder-coated with epoxy resin.
Water supply via built-in solenoid valve with connection for water pressure hose 1/2 "(inner ø approx. 12.7 mm).
Cooling water outlet with hose connection 1/2 inch (inner ø approx. 12.7 mm).
Hoses for water supply and drain are available as an option.
areas of application
GFL water distillers are required in research and development for bacteriological and medical sample preparation, for the preparation of cell and tissue cultures as well as for the production of reagents and ointments. In addition, distillate is used for cleaning and sterilization processes,
for buffer solutions as well as for microbiological and analytical applications,especially for HPLC.
* Average value determined by Institut Fresenius for operation with tap water.
The distillate quality depends on the raw water quality.
** other voltages on request
